Steel and mould steel
Hard metal in thick blocks. Use the tall H series for cutting heights of 600, 700 or 900 mm, or a standard machine with variable blade speed.
Sheng Woei Machinery Co., Ltd.
Vertical band saw factory in Taiwan, founded in 1966
Standard, auto-feed, tall and built-to-order machines for steel, aluminium, graphite and odd-shaped parts.
- Year founded
- 1966
- Throat, standard line
- 304 to 700 mm
- Table travel range
- 300 to 2,200 mm
- Cutting height, tall models
- 600, 700, 900 mm
What we cut
Four kinds of work. If yours is not here, tell us.
Large aluminium plate and blocks
Big pieces need a long table. Built-to-order machines have table travel up to 2,200 mm. The S-700A also comes with a clamp for aluminium wheels up to 600 x 400 mm.
Graphite and carbon blocks
One model has three sealed dust ports. Per our website, a 900 mm carbon block was cut to within ±1 mm.
Irregular shapes
Parts that do not sit flat, like tire sections. The S-700A has a hydraulic table that carries up to 1 ton.
Our machines
Seven machine types. Specs are from our product pages.

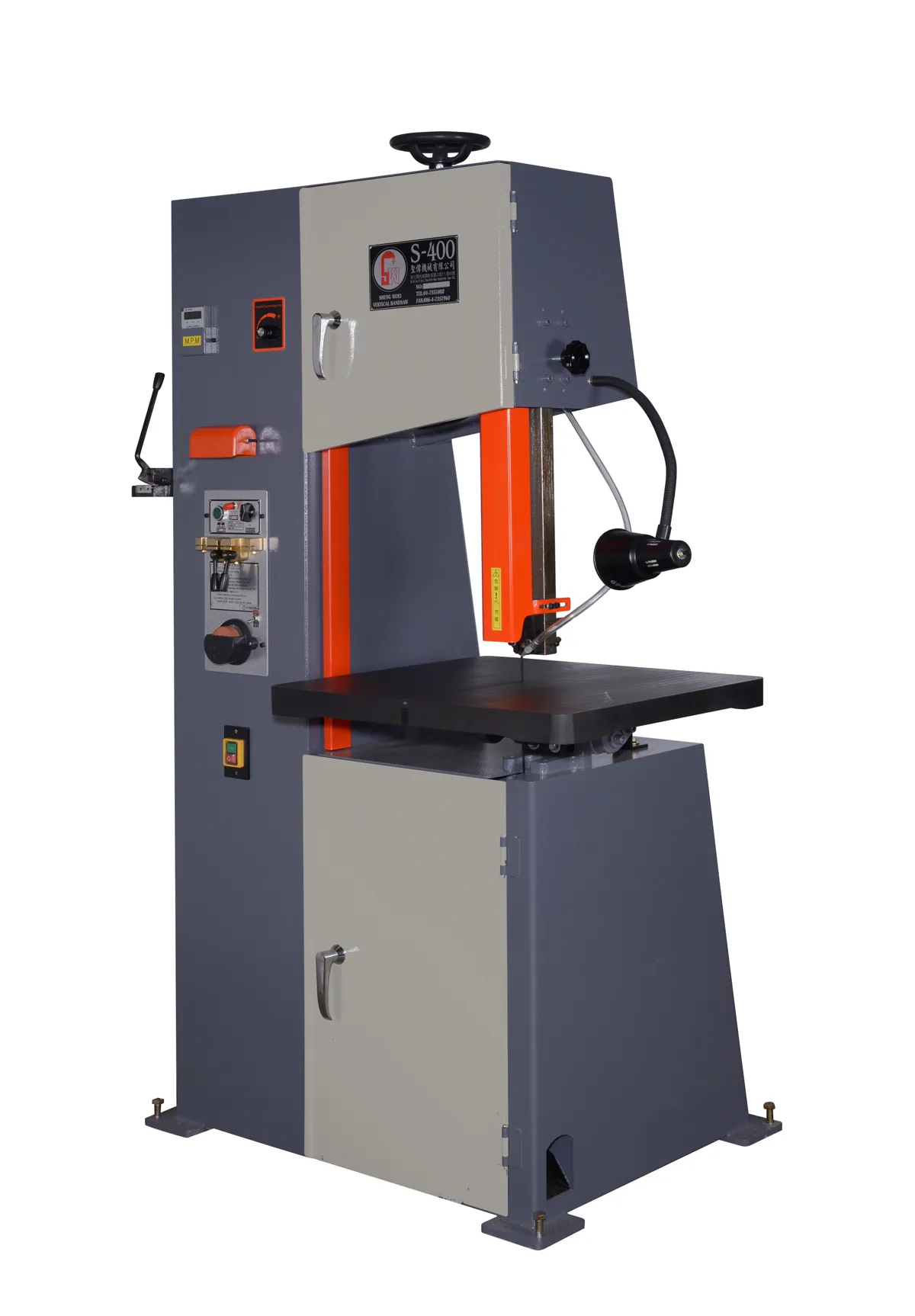

S-310 to S-700
Standard vertical band saw
The base line. Variable blade speed, throat from 304 to 700 mm.
- Throat
- 304 to 700 mm
- Blade speed
- Variable
A series
Hydraulic auto-feed
A hydraulic system pushes the table through the cut.
- Hydraulic system
- 1 HP
- Table travel
- From 300 mm

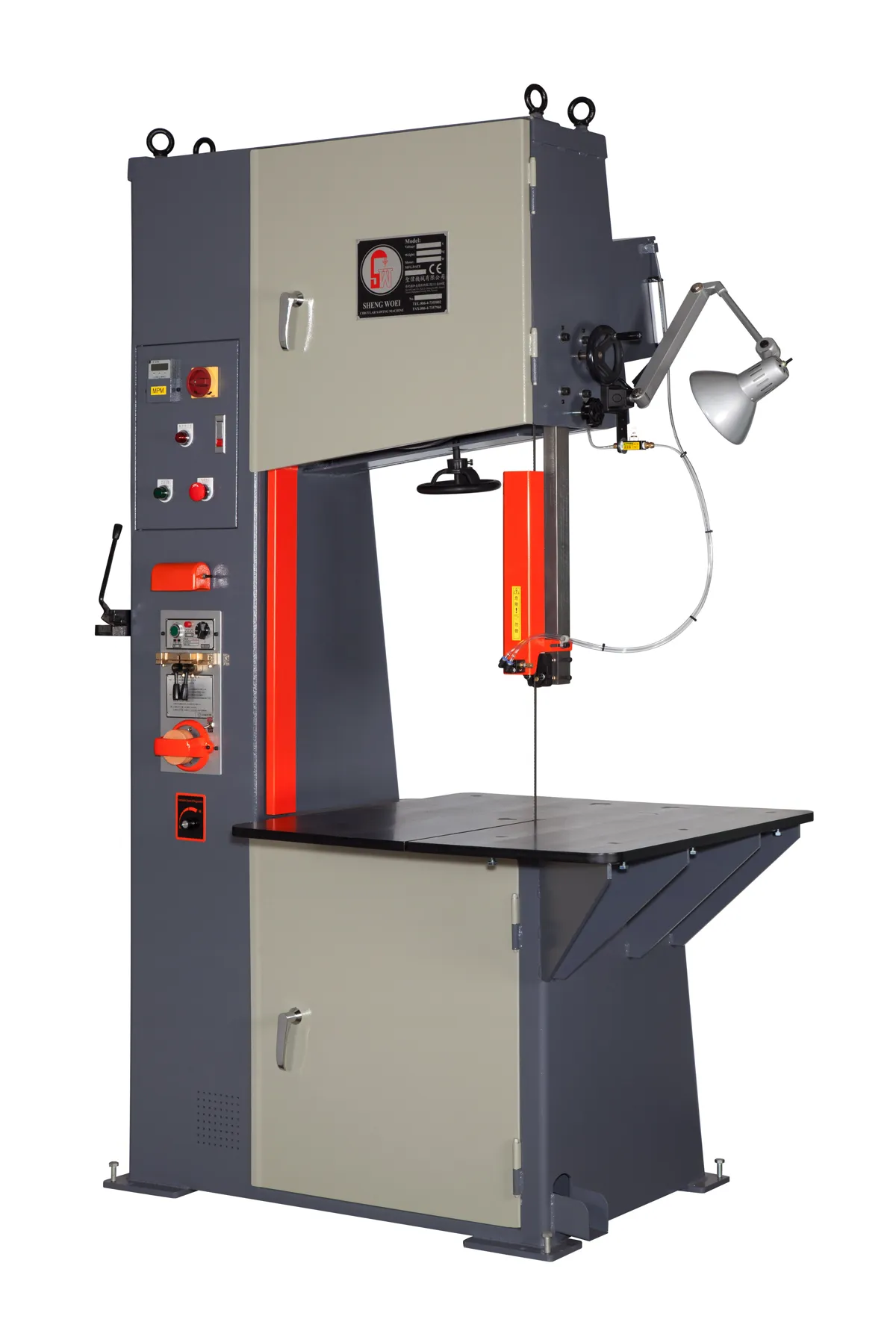

H series
Taller cutting height
For thick work. Three cutting heights.
- Cutting height
- 600, 700 or 900 mm

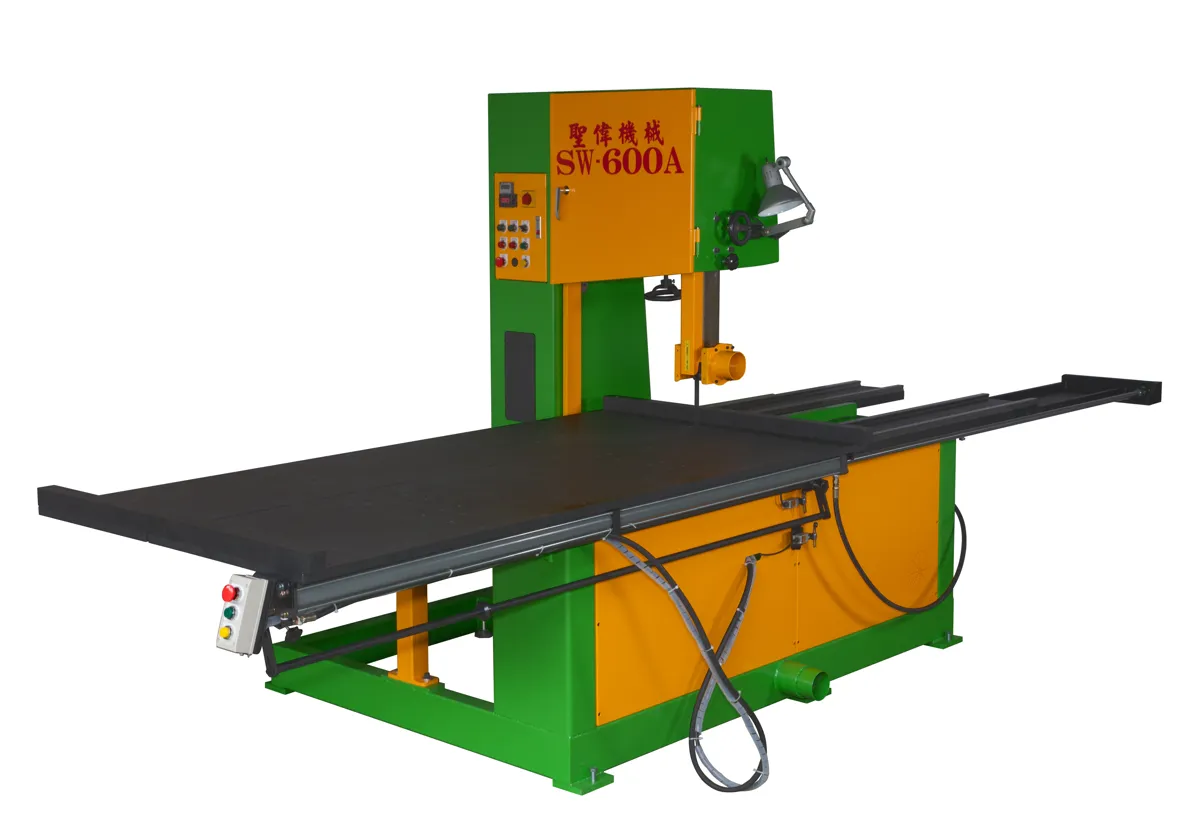

Built to order
Custom machines
Send us the part. Table travel is set to suit it.
- Table travel
- 300 to 2,200 mm
- Supply voltage
- 220, 380, 415 or 460 V, by model

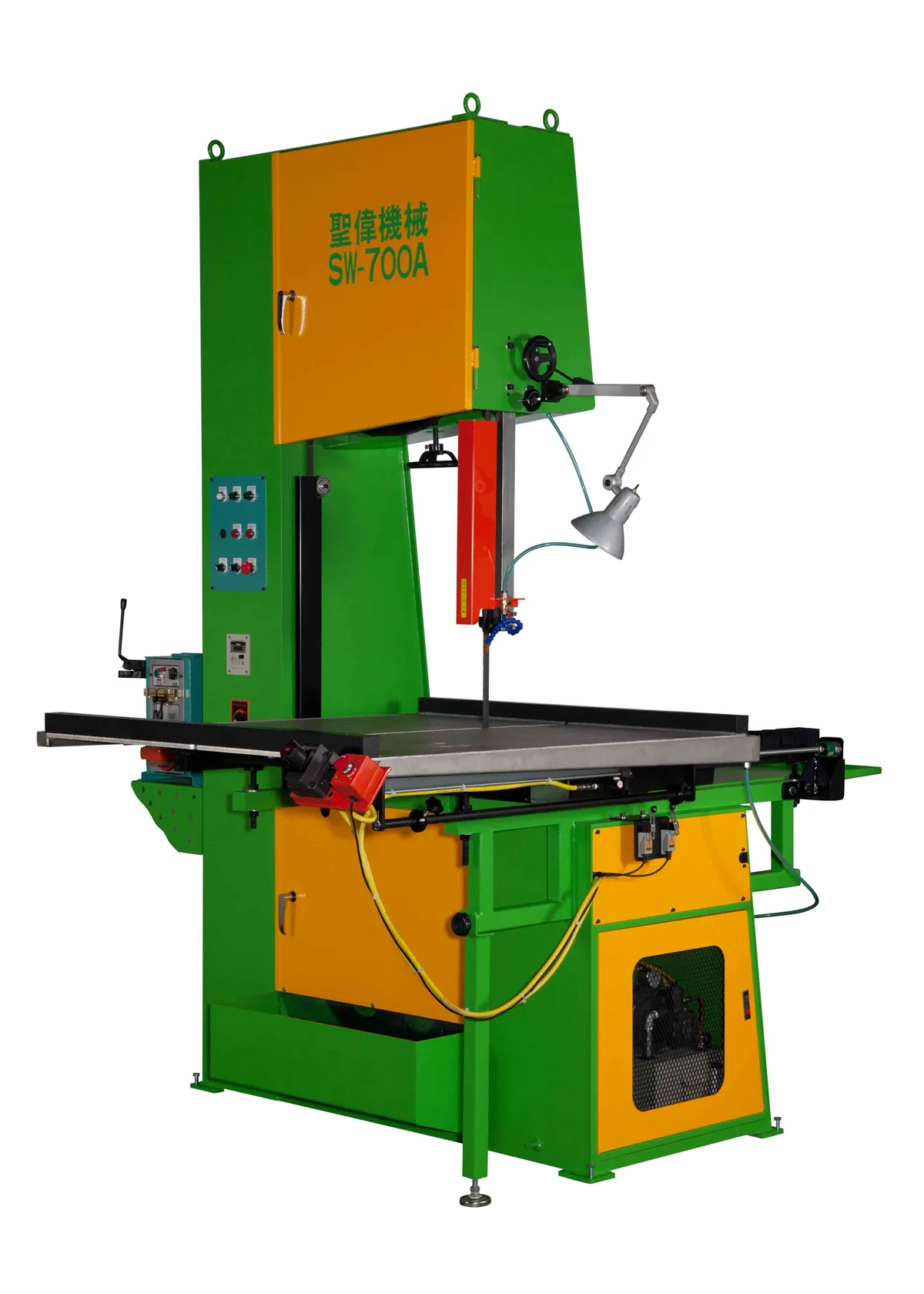

S-700A
Tire section cutting machine
Cuts tire sections. The body is waterproof and the coolant is plain water, not cutting oil. Hydraulic table carries up to 1 ton.
- Throat
- 700 mm
- Cutting height
- 500 mm
- Table travel
- 800 mm
- Main motor
- 15 HP
- Blade speed
- 200 to 800 m/min

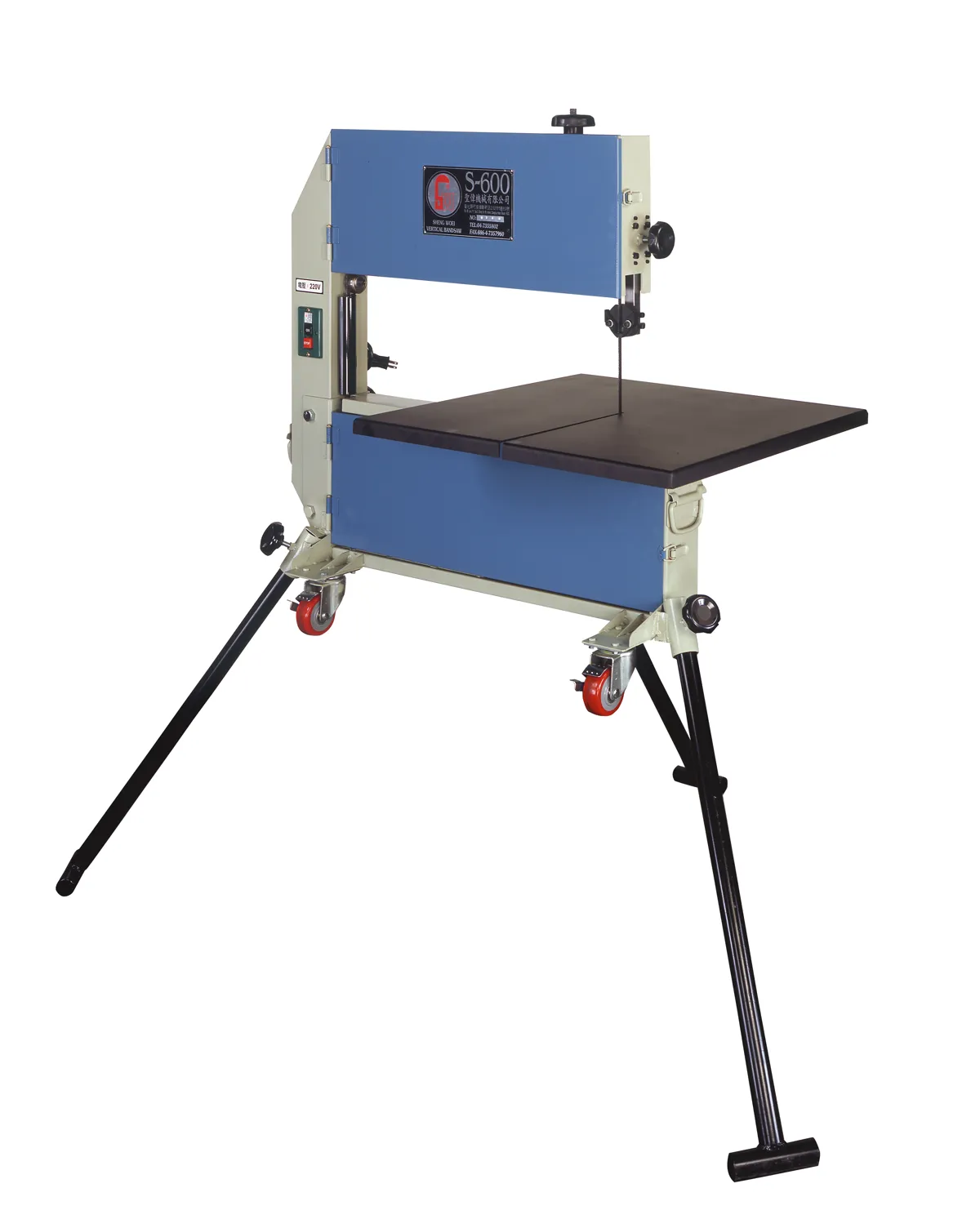

S-600
Raised floor panel cutter
A portable band saw for cutting raised floor panels on site. It comes apart in two pieces.
- Throat
- 600 mm
- Cutting height
- 120 mm
- Main motor
- 1/2 HP
- Blade speed
- 83 m/min

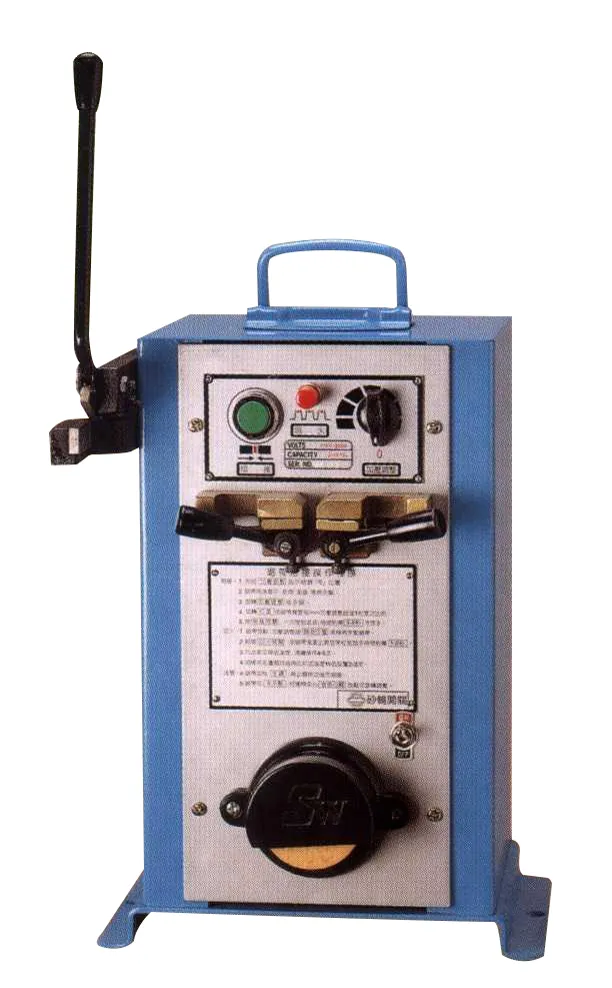

Blade welder
Band saw blade welder
Joins the ends of a band saw blade. Three sizes.
- Power
- 1.2, 2.0 or 4.2 kVA
- Blade width
- 3 to 13, 3 to 15 or 3 to 19 mm
Blade how-to
Two short videos from the factory.
Change a blade
Take off the old band saw blade and fit a new one.
Weld a blade
Join the two ends of a blade on the blade welder.
Ask for a quote
Send us the material, the largest size, the daily output and your local voltage. We reply with a suggested model.
- sw355802@gmail.com
- Phone
- +886-4-7355802
- Address
- No. 69, Sec 2, Lane 111, ChangXin Rd, Homei, ChangHua 508, Taiwan
